Fe-Zn Galva-annealed Steel Sheet (GA)

Product Features

Galva-annealed steel sheet offers significant improvements in weldability and paintability by undergoing a simple pre-treatment process. After the coating process a special heat treatment forms an alloy layer between the galvanized layer and the metal base.

Superior weldability

The weldability of galvanized sheet is drastically compromised because of the absorption of zinc coating onto the welding electrode. Galva-annealed plate improved its weldability significantly thanks to the high melting point of FeZn alloy on the surface, which prevents electrode contamination.

Greater peeling resistance

Due to exceptional paint adhesiveness resulting from the formation of alloy layers, the peeling resistance during the bending and folding treatment is greatly enhanced, compared to regular hot-dipped sheet.

Superior paint adhesiveness and corrosion resistance

The rough alloy layers of the galva-annealed sheet surface facilitates the reaction to the pre-treatment (phosphate and chromate treatment), improving paint adhesiveness and corrosion resistance.

Improvements in powdering

The FeZn alloy layer generally displays a high level of hardness and low ductility, causing the alloy layer on the surface to peel off as powder during deep drawing. Our #3CGL uses the high frequency induction heat method during the heat treatment that follows the coating phase, which drastically lowers the degree of powdering, presenting an elegant steel surface.

Powdering can be improved if a low coating material (F 10 or lower) is used during deep drawing.

Cross Section

c

Production Availability

3CGL

3

Specifications

s

Surface Finish

sf

Surface Treatment

st

Oiling


Finish and Application

sa

After-Treatment

Various after-treatments are available for different applications.

Oiling : Car parts, products that require more machinablity

Chromate treatment : Home appliances, easy to paint on

Organic Coating : Corrosion resistance, easy to paint on, flexible, fingerprint resistance

Applications

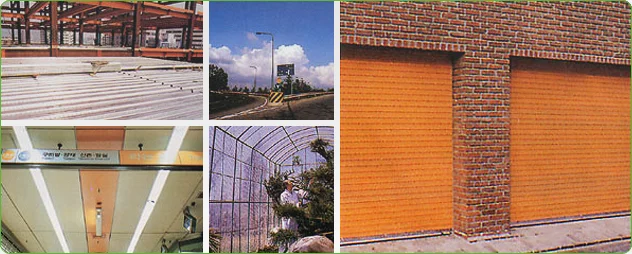

Building (Interior/Exterior)


Automotive Components

a

Home Appliances

h

Applied Specifications

KS D 3506
Remarks: KS D 3053-88
JIS G 3302-98
ASTM A653/A653M-97
